MPS CO2 System 7
Regular price $250.95
Unit price per

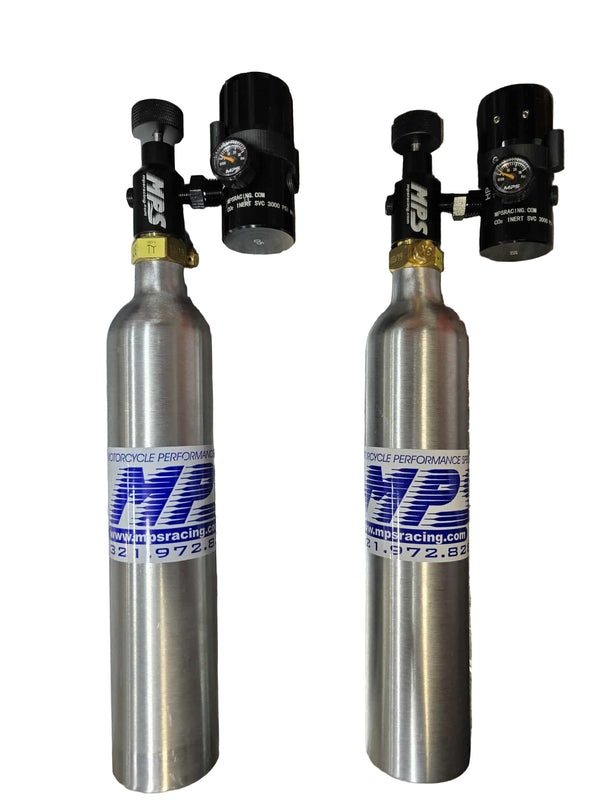

We have 2 options of the system 7 we have the standard system 7 with regulator and brass fittings and we also have the new premium version with all black hardware, regulator locker and high pressure gauge.
STANDARD VERSION
MPS High Pressure Components
Hundreds of shifts from one bottle fill
Kits for any bottle size
Small Size
The MPS Pressure Regulator (P/N 1-0352) has 4 ports. A 1/4” NPT inlet (High Pressure) port, an 1/8” NPT gauge (High Pressure) port, a 1/4” NPT outlet and an 1/8” NPT outlet (Regulated Pressure 0-275 psi) port . The ports are all labeled, HP for high pressure and LP for low or regulated pressure. The inlet port is supplied with a 1/4 NPT hex nipple installed that reduces it to 1/8 NPT male that can be installed into the bottle valve actuator of your CO2 bottle or gauge adapter of your nitrous bottle. This can be replaced with a -4 x 1/4 NPT AN fitting and use a -4 line to connect to your high pressure source. The outlet has a 1/4 NPT x ¼ poly fitting. This will go out to your low pressure device. We recommend using a small tank in conjunction with this regulator to insure an adequate volume of gas for your device.

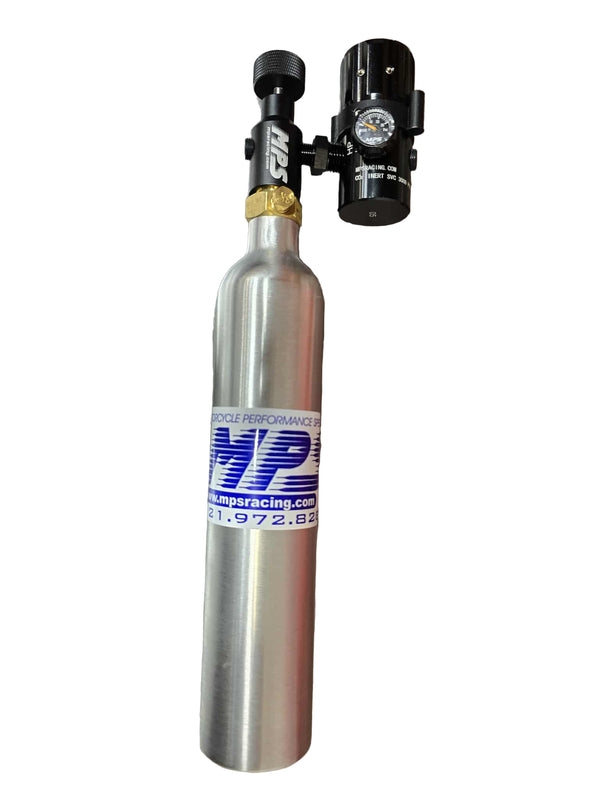

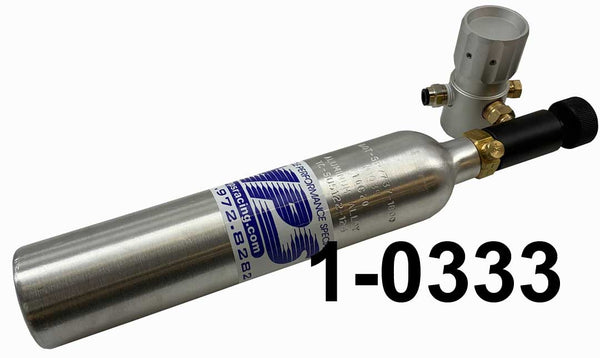

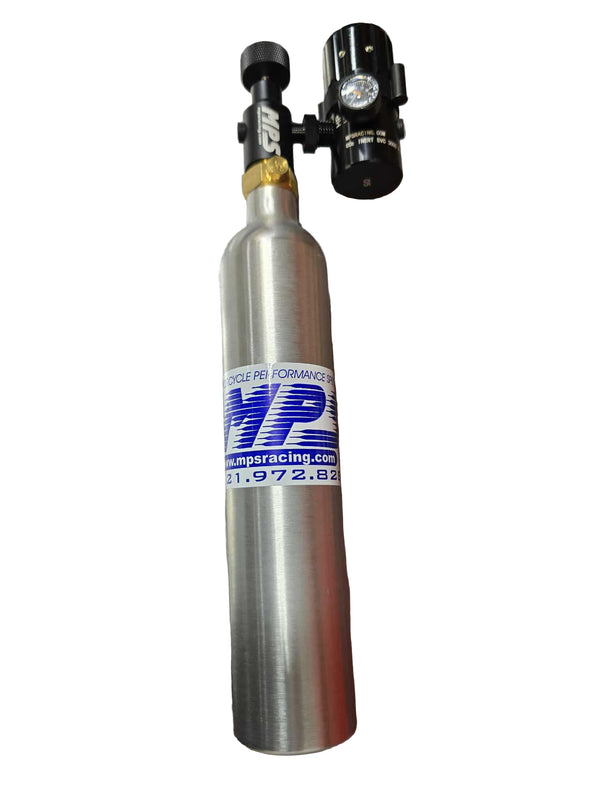

The MPS CO2 System 7 (P/N 1-0333) converts your low pressure air shifter system into a regulated high pressure system capable of hundreds of shifts from a smaller bottle. The CO2 System 7 kit comes with a 7 ounce bottle with pin valve and a Regulator assembly for paintball bottles (P/N 1-0329). The bottles can be filled at any paintball refill center.
The pin valves on CO2 bottles operate like schrader valves on a tire. Pushing down the pin opens the valve. The pin valve actuator works by pushing down on the pin when you screw the on-off knob clockwise. Since CO2 is a liquid in the bottle and the regulator can’t regulate liquid, you must mount the bottle so that only gas and no liquid can get into the regulator. We recommend having a small tank between the regulator and the air valve.
PREMIUM LOADED VERSION
The legendary MPS system 7 CO2 system got a face lift with additional upgrades!

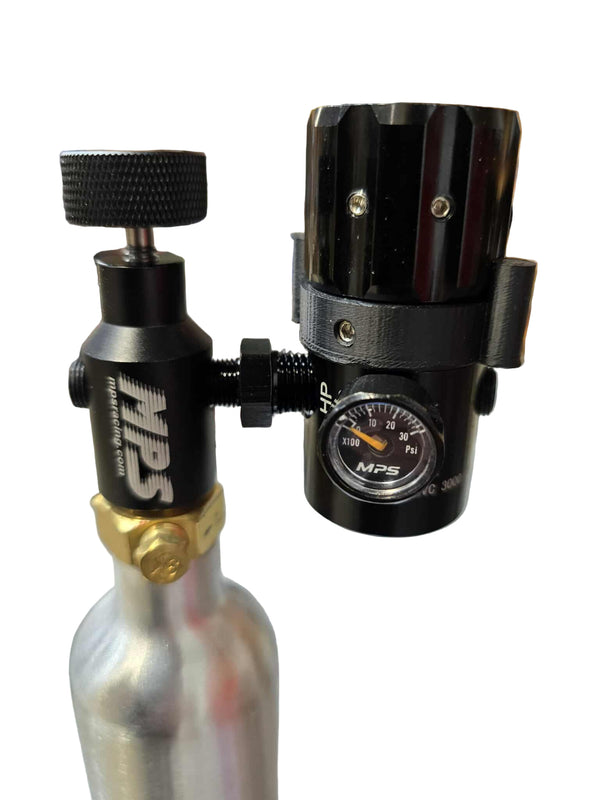

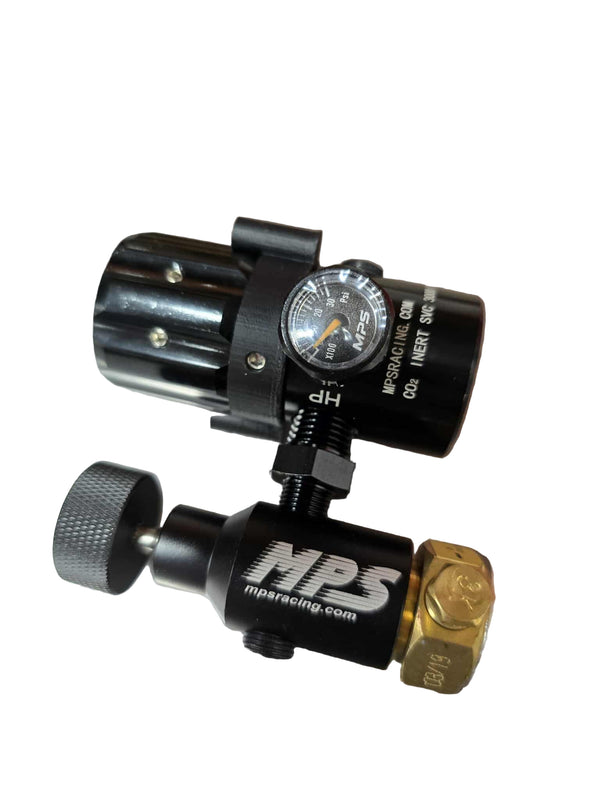

We still offer the traditional system 7 But we upgraded all hardware to black aluminum and tossed on the high pressure gauge with regulator locker to keep pressure settings from moving !
