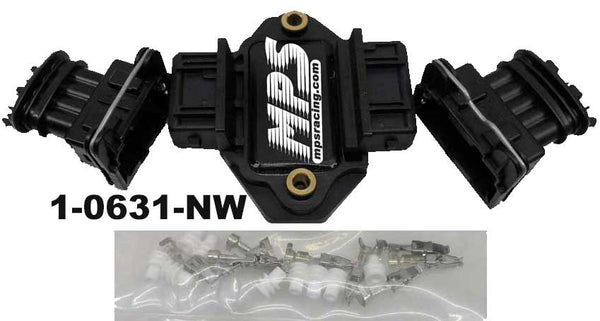

MPS Igniters for 2 Wire Coils

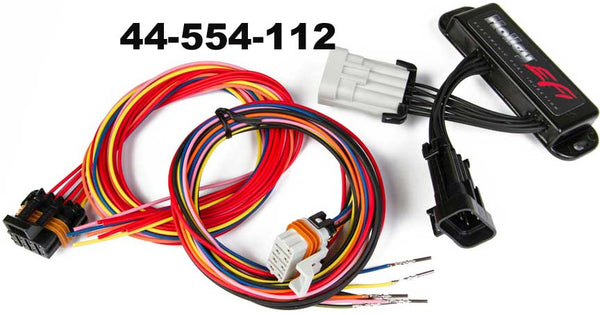

Holley Four Channel Coil Driver Module

The four channel coil driver module is used to drive a two wire “dumb” ignition coil. Holley EFI ECUs require this coil driver module when running two wire “dumb” coils. Each module can drive four coils, so two are required for an eight cylinder engine that uses eight coils. Included is the coil driver module, an input harness with pins that can be connected directly into the HP or Dominator ECU, and an output harness with pigtail ends. The user must connect these to their specific coils.

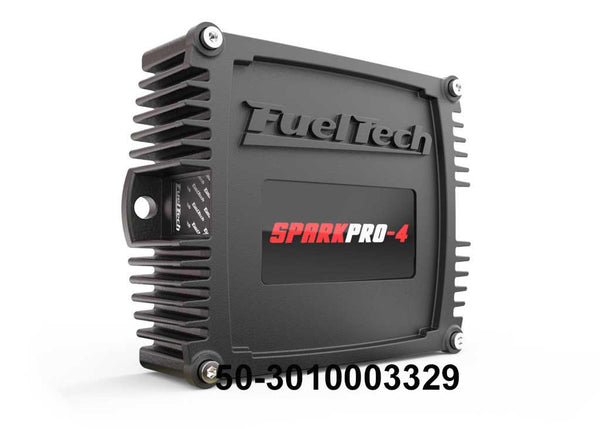

FuelTech SparkPro-4

Features:

• High energy inductive ignition
• Versions from 1 to 6 ignition outputs
• High Voltage at the coil’s primary: up to 430V

Technical Description

• Used only with “dumb” coils (coils without igniter)
• Each SparkPRO channel can be connected to only one coil at a time
• Compatible with any programmable ECU that has dwell control
• Cannot be used with stock ECU
• Dimensions: 115 x 90 x 33mm
