60lb/hr 650cc/min

42lb/hr 430cc/min

80lb/hr 840cc/min

94lb/hr 980cc/min

MPS Injectors are available in 4 sizes:

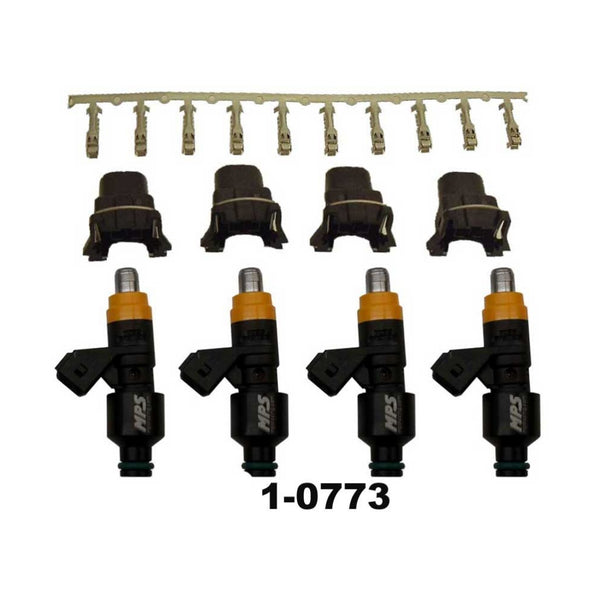

• 42 lb/hr / 440 cc/min (up to 270 normally aspirated horsepower @ 80% duty cycle & 43 lbs of fuel pressure)

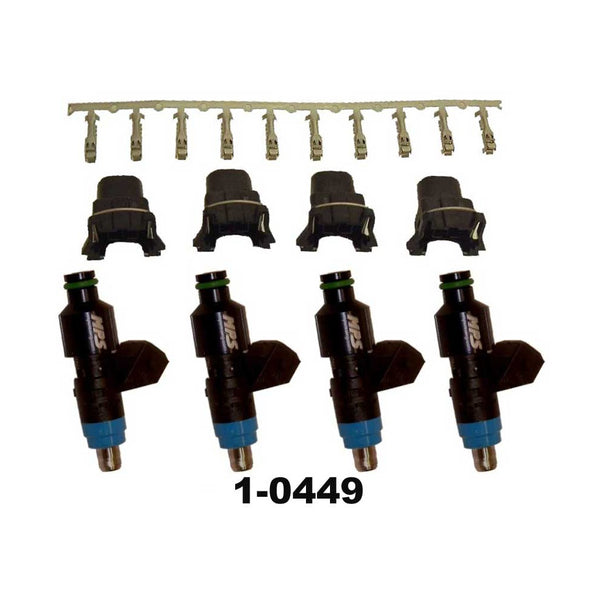

• 60 lb/hr / 630 cc/min (up to 385 normally aspirated horsepower @ 80% duty cycle & 43 lbs of fuel pressure)

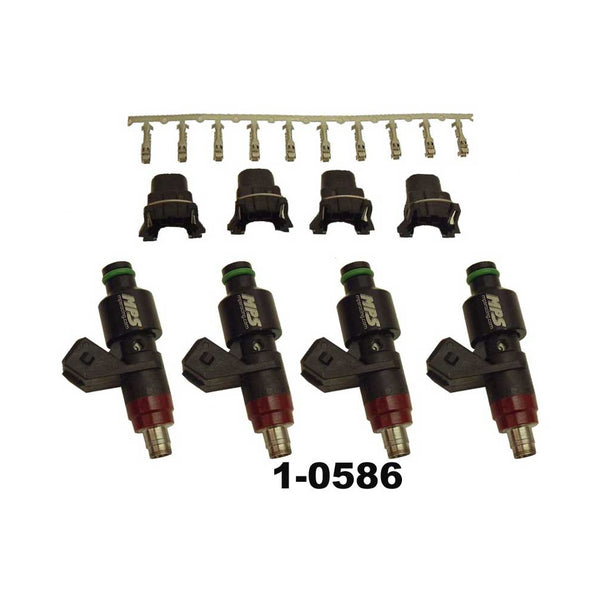

• 80 lb/hr / 840 cc/min (up to 510 normally aspirated horsepower @ 80% duty cycle & 43 lbs of fuel pressure)

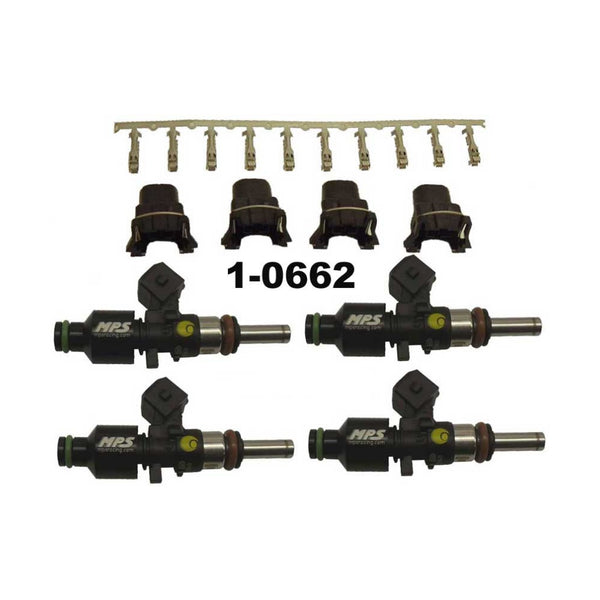

• 94 lb/hr / 990 cc/min (up to 600 normally aspirated horsepower @ 80% duty cycle & 43 lbs of fuel pressure).

The stock Gen 1 Hayabusa has 24.5 lb/hr . They are ideal for dry nitrous and turbo applications where much more fuel is needed. We can flash your 2002 - 2007 Hayabusa ECU with a base map for the 60 lb/hr injectors. This makes tuning easier. Both sizes fit in the Gen I Hayabusa stock fuel rail perfectly. The RCC Billet Fuel Rail ( p/n 84-41.1) is required to use our 42, 60, or 80 lb/hr injector kit in the secondary position on Gen 2 Hayabusas. The kits comes with everything necessary to install including new injector connectors.

NOTE -  **To be used with aftermarket fuel rail for oversized injectors

42# Injector Specifications:

• Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
• Static Flow Rate @ 43.5psi ( 300kPa ) w/Gas: 42 lb/hr = 430 cc/min
• Offset: 0.065ms
• Connector: Bosch Style
• Series: DEKA 4 ( DEKA IV )
• Orifice Type: Multi-orifice
• Spray Pattern: 30 Degree Spray Cone

• Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
• Static Flow Rate @ 43.5psi ( 300kPa ) w/Gas: 60 lb/hr = 630 cc/min
• Gain: 0.11ms/mg
• Offset: 0.055ms
• Turn on time @ 14VDC: 1.14ms
• Turn off time: 0.85ms @ 600KPa
• Connector: Bosch Style
• Orifice Type: Multi-orifice
• Spray Pattern: 30 Degree Spray Cone

• Coil Resistance: 12.5 Ohms / High Impedance / High-Z (No ECM driver modifications required)
• Static Flow Rate @ 43.5psi ( 300kPa ) w/Gas: 80 lb/hr = 875 cc/min
• Offset: 0.065ms
• Opening/Closing Time 1.3ms / 0.7ms
• Connector: Bosch Style
• Spray Pattern: 26 Degree Spray Cone

94# Injector Specifications:

• Coil Resistance: 12.8-14.5 Ohms
• Static Flow Rate @ 43.5psi ( 300kPa ) w/Gas: 94 lb/hr = 980 cc/min
• Connector: Bosch Style
• Spray Pattern: 30 Degree Single
• Length: 37mm
